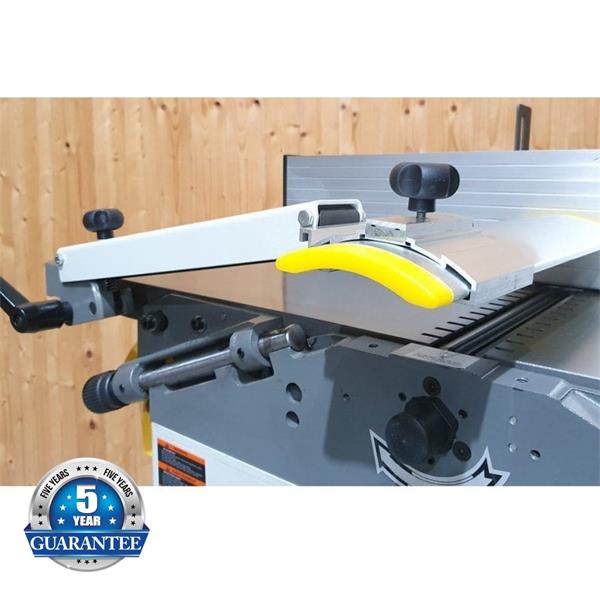

Precision ground cast iron beds and a long tilting fence
It can be positioned at any point across the table make this machine a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.

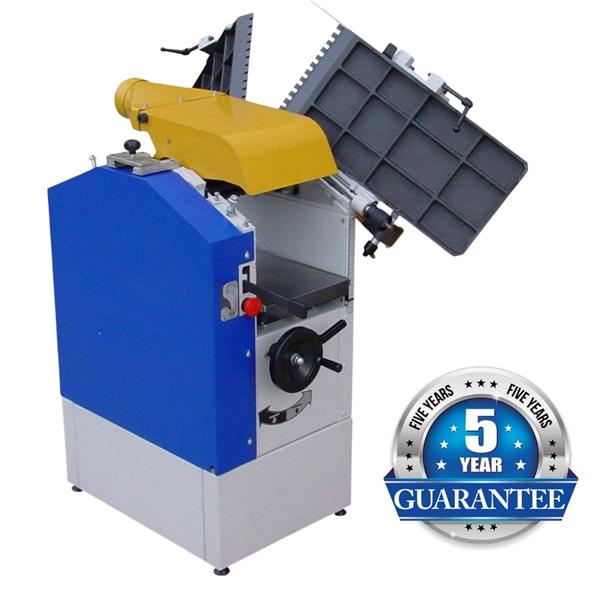

To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter guard then swings into position and the conversion to Thicknesser is complete. A sensor detects when the cutter guard is correctly positioned before allowing the motor to run.
The feed roller drive, which features a rubber outfeed roller, can be disengaged during planing operations to save motor power and general wear on the machine.
Supplied with 3 knives, 100mm dust extraction outlet, 4 adjustable feet, 1.6m power cable and UK 3 pin plug.
Our W583 planer thicknesser will run off any standard 13amp supply.
It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives. We recommend our W691 extractorto use with this planer.
A solid and well finished planer thicknesser for the busy workshop.
- Precision Ground Cast Iron Beds
- 2hp Induction Motor
- 3 Knife Cutterblock for Superior Finish
- 10” Planing Capacity
- 10” x 7” Thicknessing Capacity
- Rubber Coated Outfeed Roller
- 100mm diameter Dust Extraction Outlet
- Optional Wheel Base Available
