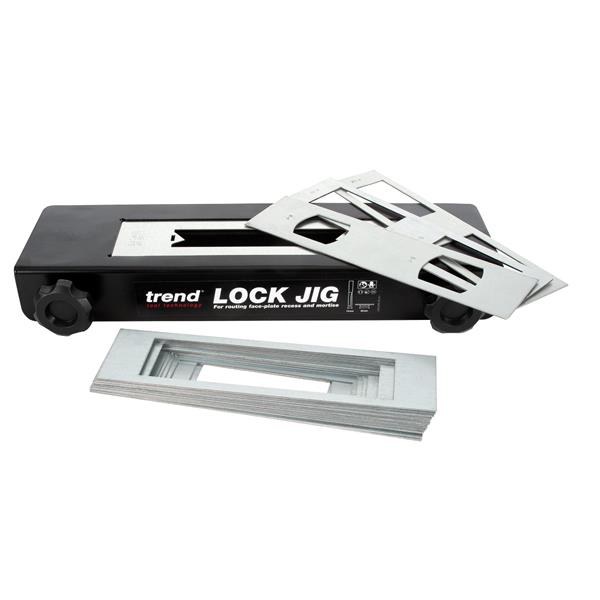

The Trend LOCK/JIG/C Professional Lock Recessing Jig is your go-to solution for achieving precise and efficient lock installations in timber doors. Designed with a robust steel construction, this jig stands up to rigorous usage, making it a site-tough routing jig. Its interchangeable templates allow for seamless adjustments to cut lock and face-plate recesses, suitable for a variety of applications.
With tool-free setup, you can effortlessly transition between tasks, ensuring speed and accuracy that professionals demand. The Trend Lock Jig is compatible with popular mortice sash locks, dead locks, and tubular latches from leading ironmongery brands, simplifying your workflow.
Features:

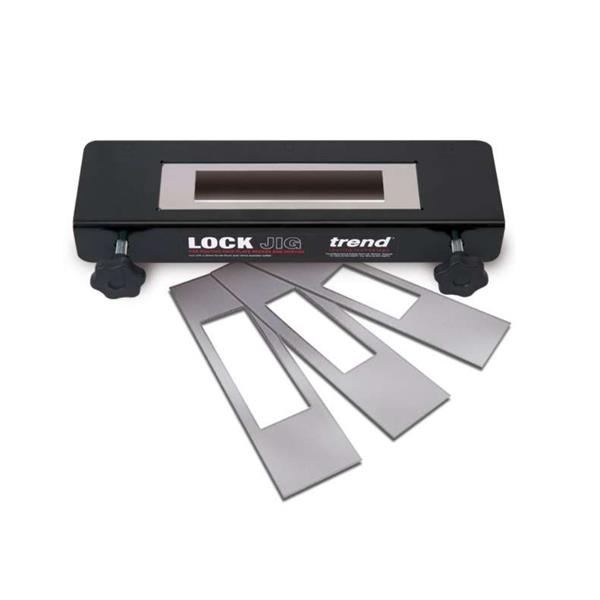

- Trend LOCK JIG Lock Recessing JigThis jig uses a set of interchangeable templates and with a router will cut the mortise and face-plate recess for popular door locks
- For most common sash mortises and dead locks, with up to 3 inch deep mortises and a 7/8 inch or 1 inch face-plate
- Deeper mortises can be achieved with a suitable size of auger bit
- Fast, clean and accurate results on doors 34 mm to 58 mm thick, even in hardwood
- Steel plates and body

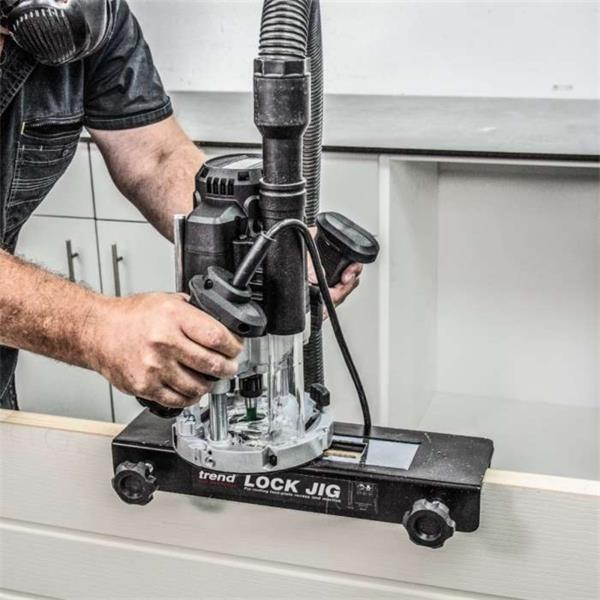

- The jig requires a plunge router with a 80 mm plunge, fitted with a 30 mm guide bush with 6 mm spigot and 12 mm diameter long reach cutter
Specifications:
- Minimum Door Thickness: 34 mm
- Maximum Door Thickness: 58 mm
Includes:
- 1 x Guide Bush Collar
- 12 x Face Plate Templates - 22.2 x 156 mm, 22.5 x 152.5 mm, 25.4 x 121 mm, 25.4 x 127.5 mm, 25.4 x 133.5 mm, 25.4 x 145 mm, 25.4 x 153 mm, 25.4 x 156.5 mm, 25.4 x 165.5 mm, 25.4 x 177 mm, 25 x 57.5 mm, 26 x 56.5 mm, 25.6 x 162mm
- 8 x Mortise Templates - 16 x 72 mm*+, 16 x 107 mm*, 19 x 78 mm*, 19 x 109 mm*
- 6 x Spacer Fingers
